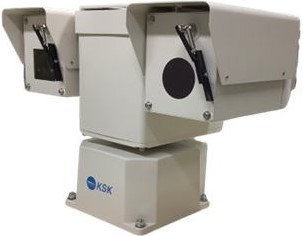

Compact Surveillance Camera System, Twin-Cam 24, for day and night
Product outline
This
product has a high-performance infrared camera and a visible color camera
mounted on a small rotary base. This has a low cost and a small surveillance
camera that can monitor 24/7 for day and night.
Features of the Twin-Cam 24
-A lightweight and compact system that can be mounted on a roof carrier of a light truck and can beinstalled just about anywhere.
-If you want to check the monitoring status on your smartphone or tablet by connecting it to the wired
internet or a wireless data communication, which are called as KSK SIM, you can monitor it at any time
with a simple operation.
-It complies with the IP65 standard for dust and water resistance to withstand harsh outdoor environments.
30x optical zoom multiplied by 32x digital zoom equals 960 times.
In this way, you can use the visible color camera under the above conditions during the day. On the other hand, at night, you can use an infrared camera that can be clearly seen even in total darkness, enabling 24/7 surveillance with no blind spots.
These cameras are ideal for short- to medium-range surveillance for crime prevention, anti-fish poaching, volcanic surveillance, wildlife damage control and more.
Alternatively, they are useful for disaster countermeasures, such as monitoring sea conditions in the event of an earthquake and guiding evacuations.
| [Infrared camera part] -Microbolometer with uncooled type -300,000 pixels (640 x 480 pixels) -Frame rate: 30 frames/sec -Lens: select from 14mm / 19mm / 25mm / 35mm / 60mm. [Visible color camera part] -1/3 type CMOS -2.1 million pixels (1944 x 1092 pixels) -Zoom: 30x (optical zoom), 32x (digital zoom) Rotary base -Panning angle: horizontal 360° (no limit) vertical + 90° to - 90° -Outer dimensions: W480 x D311 x H380mm -Weight: approx. 25kg |
 |
Sample videos
| A video image of Tokyo Station direction from our headquarters at day and night. | |
| twincam24_sample2.flv | A video image of the coast at night. |
